COLUMN SPEAKERCOLUMN SPEAKER

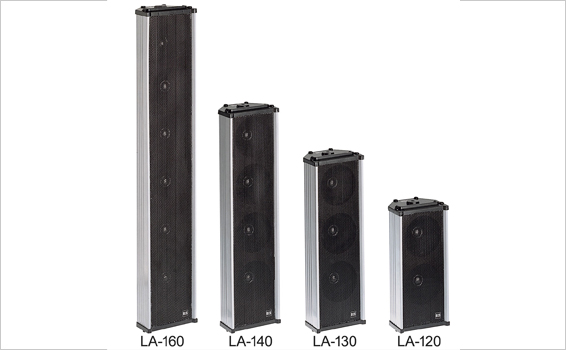

LA series  ▶ LA-120  ▶ LA-130  ▶ LA-140  ▶ LA-160   using KS speaker   die-casting cover depending , aluminum body   Easy to attach to/detach from a wall   Built in a matching transformer (100v line)   Well fit with the surrounding environment indoors and outdoors   A high quality speaker, protective grill is used   Input voltage : 100V line   Be applied in conference rooms, auditoriums, lecture halls,   warehouses, schools,   community center etc.



Specification

model	LA - 120	LA - 130	LA - 140	LA - 160
max power	20W	30W	40W	60W
inpedance	1K , 500Ω	333Ω,666Ω	250Ω , 500Ω	333Ω , 166ΩΩ
dimensions ( mm )	330 X 147 X 110	385 X 147 X 110	575 X 147 X 110	830 X 174 X 110
frequency range	250Hz - 15KHz	250Hz - 15KHz	250Hz - 15KHz	250Hz - 15KHz
sensitivity (1W/1M)	110dB	113dB	116dB	118dB
net weight	3,500g	4,500g	5,500g	6,000g
unit	10W X 2PCS	10W X 3PCS	10W X 4PCS	10W X 6PCS
color	silver & black	silver & black	silver & black	silver & black
materials	aluminum	aluminum	aluminum	aluminum
